Description

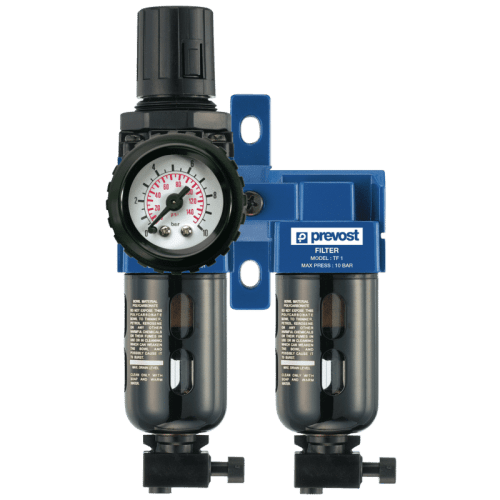

ALTO 1 – 2-PIECE-SET – 1/4” MICROFILTER ASSEMBLY WITH REGULATOR (GAUGE INCLUDED) AND WALL BRACKET

Technical specifications
  • Temperature : 41°F to 122°F

  • Construction :Body : Aluminium

    Polycarbonate bowl with metallic protection

  • Equipped with :Manual drain

Combination fitted with dual-stage filtration for application without oil

Equipped with a pressure gauge (glass dial): 0 to 145 psi

Max operating pressure: 174 psi

NPT female thread Flow rate (cfm at 87 psi

ΔP=14 psi)

Max operating pressure (psi) Filtration (µm) Reference
1/4″ FNPT 8.83 174 5 and 0.01 TB CSM201

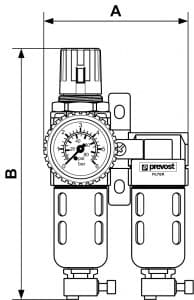

A (inch) B (inch) Reference
3.622 6.693 TB CSM201

Additional information

Product Range

Alto Air Treatment
