Description

2-PIECE-SET – 1/2” MICRO-FILTER ASSEMBLY WITH REGULATOR (GAUGE INCLUDED) AND WALL BRACKET

Technical specifications
  • Temperature : 41°F to 122°F

  • Construction :Body : Aluminium

    Polycarbonate bowl with metallic protection

  • Equipped with :Manual drain

Equipped with a pressure gauge: 0 to 145 psi

Max operating pressure: 174 psi
NPT female thread Flow rate (cfm at 87 psi

ΔP=4psi)

Max operating pressure (psi) Filtration (µm) Reference
1/2″ FNPT 52.95 174 5 and 0.01 TB CSM203

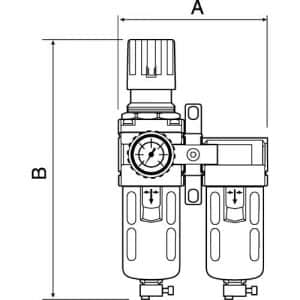

A (inch) B (inch) Reference
6.142 11.024 TB CSM203

TB CSM203

Additional information

Product Range

Alto Air Treatment
